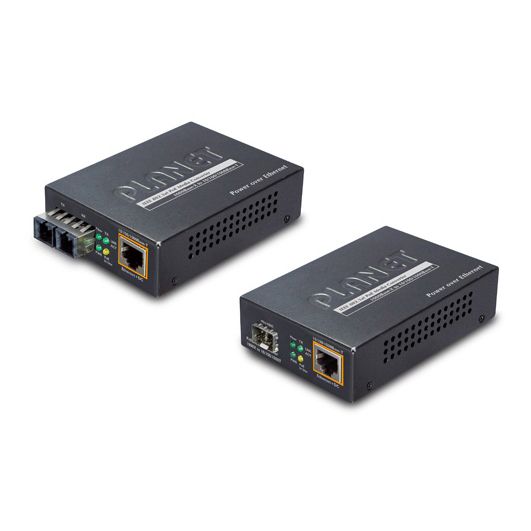

Industrial Compact 100/1000Base-X to 10/100/1000Base-T PoE+ Media Converter
- 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Power over Ethernet:
- Complies with IEEE 802.3at PoE Plus end-span PSE
- 1 IEEE 802.3at/af device powered
- Supports PoE Power up to 36 watts for PoE port
- Provides DC 48~56V power over RJ45 Ethernet cable to PD with Ethernet port
- Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
- IEEE 802.3at/af PoE splitter devices compatible
Layer 2 Features:
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Hardware:
- DIP switch: LFP (Link Fault Passthrough) mode selection
Industrial Case and Installation:
- IP30 metal case
- DIN-rail and wall-mount designs
- 48V~56V DC power with reverse polarity protection
- Connective removable terminal block
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Lagerbestand:
- 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Power over Ethernet:
- Complies with IEEE 802.3at PoE Plus end-span PSE
- 1 IEEE 802.3at/af device powered
- Supports PoE Power up to 36 watts for PoE port
- Provides DC 48~56V power over RJ45 Ethernet cable to PD with Ethernet port
- Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
- IEEE 802.3at/af PoE splitter devices compatible
Layer 2 Features:
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Hardware:
- DIP switch: LFP (Link Fault Passthrough) mode selection
Industrial Case and Installation:
- IP30 metal case
- DIN-rail and wall-mount designs
- 48V~56V DC power with reverse polarity protection
- Connective removable terminal block
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Industrial:
Ja
PoE Standard:
IEEE 802.3 at
Schnittstellen:
SFP
PoE Support:
IEEE 802.3 at
Abmessungen:
30 x 70 x 104 mm
Schutzklasse:
IP30
1 GBit Ports, PoE:
1
Befestigung:
Hutschiene, Wandmontage
Betriebstemperatur:
-40°C - +75°C
DIP Switch Funktion:
Link Fault Passthrough Enable/Disable
Flow Control:
Back pressure for half duplex mode, IEEE 802.3x pause frame for full duplex mode
Gehäuse Material:
Metall
Luftfeuchtigkeit:
5 - 90%, nicht kondensierend
PoE Gesamtleistung:
36 W
PoE Netzteil:
End-span
SFP 100/1000Mbps Ports:
1
Stabilitäts Test:
IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Stromversorgung:
45 - 56V DC
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
