GPON SFU ONT with 1GbE Port1
Perfectly Designed for FTTx Applications:

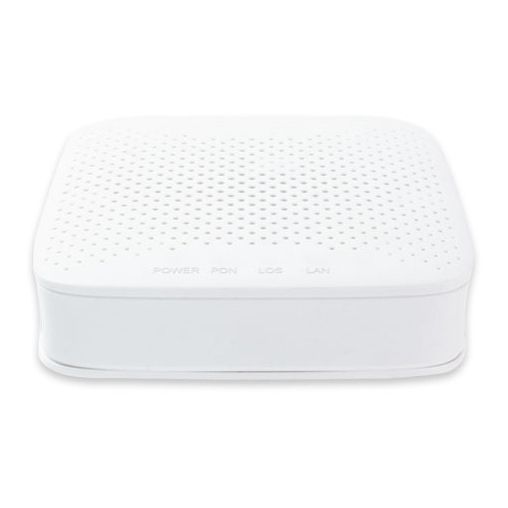

PLANET GPN-100 is a GPON Optical Network Terminal (ONT) equipped with one GPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GPON Optical line Terminal (OLT), the GPN-100 provides highly-effective GPON solutions for FTTx and multi-service networks. The GPN-100 complies with GPON ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON Access technology requirements. With Plug and Play design, it’s easy for the installation and maintenance of GPON deployment.
Excellent Access Capacity:
The GPN-100 supports PON downstream and upstream transmission rates of 2.5Gbps and 1.25Gbps, respectively. Connected with PLANET GPON OLT – GPL-8000, it can realize 1:128 split ratio. The covering radius of the network can reach up to 20km.
High-service Control Capability:
The GPN-100 supports advanced DBA (dynamic bandwidth allocation), rate limit and accurate bandwidth limit, which enable users to share 2.5Gbps bandwidth resource appropriately. It also supports QoS function, which guarantees a reliable service quality and service priority.
Advanced Energy-saving Technique:
PLANET GPN-100, adopting the advanced green networking technology, consumes very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Cost-effective Passive Optical Network Connection Solution:
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for broadband communication has grown quickly. PON is the most promising NGN (next generation networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, PON technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of long distance of up to 20km between equipment nodes, and most importantly, offer of much greater bandwidth.
1 SC type GPON port
Up to 2.5Gbps downstream and 1.
25Gbps upstream
Maximum distance of up to 20km
Compliant with ITU-T G.984/988 standards
- LED indicators for link status
Physical Hardware:
- 1x 10/100/1000Mbps Gigabit port
- 1 reset button
- 1 power switch
GPN-100 Features:
- AES128 algorithm encryption
- Dynamic bandwidth allocation (DBA) support
- Service level agreement (SLA) support
- Four priority queues
- WRR, strict priority and FIFO queue schedule algorithms
- Supports IEEE 802.3x flow control
Perfectly Designed for FTTx Applications:
PLANET GPN-100 is a GPON Optical Network Terminal (ONT) equipped with one GPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GPON Optical line Terminal (OLT), the GPN-100 provides highly-effective GPON solutions for FTTx and multi-service networks. The GPN-100 complies with GPON ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON Access technology requirements. With Plug and Play design, it’s easy for the installation and maintenance of GPON deployment.
Excellent Access Capacity:
The GPN-100 supports PON downstream and upstream transmission rates of 2.5Gbps and 1.25Gbps, respectively. Connected with PLANET GPON OLT – GPL-8000, it can realize 1:128 split ratio. The covering radius of the network can reach up to 20km.
High-service Control Capability:
The GPN-100 supports advanced DBA (dynamic bandwidth allocation), rate limit and accurate bandwidth limit, which enable users to share 2.5Gbps bandwidth resource appropriately. It also supports QoS function, which guarantees a reliable service quality and service priority.
Advanced Energy-saving Technique:
PLANET GPN-100, adopting the advanced green networking technology, consumes very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Cost-effective Passive Optical Network Connection Solution:
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for broadband communication has grown quickly. PON is the most promising NGN (next generation networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, PON technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of long distance of up to 20km between equipment nodes, and most importantly, offer of much greater bandwidth.
