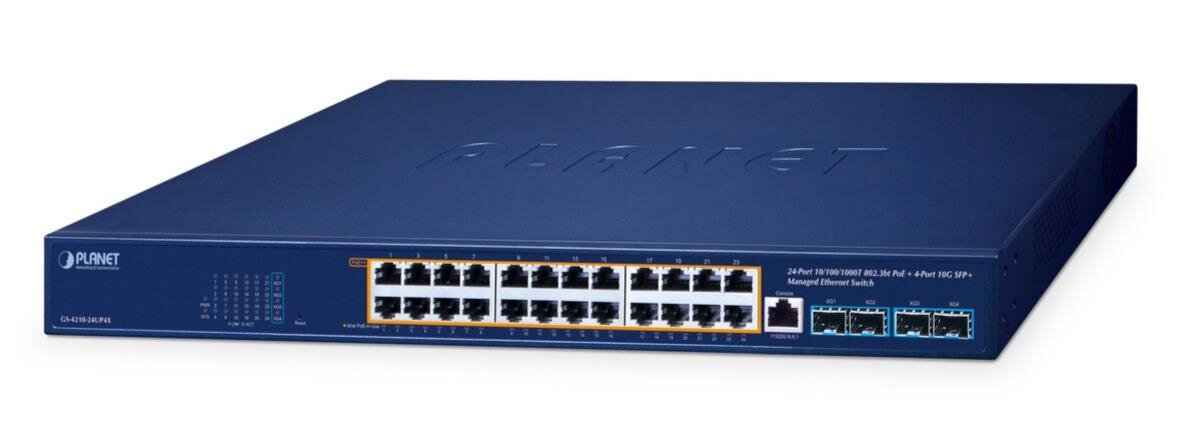

Layer L2/L4 24-Port Gigabit Switch, 24x 1 Gbit, 802.3bt PoE+, 4x 10 Gbit SFP+
Preis auf Anfrage
  • 24x 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 24)
  • 4x 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports X
  • ... mehr
Verfügbarkeit
nicht lagernd
Login für mehr Info
Artnr
GS-4210-24UP4X
Hersteller
PLANET mehr
Bereits gekauft?
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • 24x 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 24)
  • 4x 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
  • RJ45 to DB9 console interface for switch basic management and setup

Switching:

  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 16K MAC address table size
  • 12K jumbo frame
  • Automatic address learning and address aging

Power over Ethernet:

  • Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
  • 24 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (Ports 1-24)
  • Total PoE power budget of 720 watts
  • Automatic detection of powered devices (PD)
  • Built-in circuit protection to prevent power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
  • Advanced PoE management capabilities:
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • Detection of PD classification
  • Intelligent PoE features
    • PD alive check
    • PoE schedule
    • Scheduled power recycling

Layer 2 Features:

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Supports port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)

Quality of Service:

  • Ingress and egress rate limit per port bandwidth control
  • Storm control support
    • Broadcast/Unknown unicast/Unknown multicast
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast:

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering

Security:

  • Authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ login user access authentication
    • DHCP Option 82
  • Access control list
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC security
    • Static MAC
    • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention

Management:

  • IPv4 and IPv6 dual stack management
  • Switch management interface
    • Web switch management
    • Console and telnet command line interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms and events)
    • SNMP trap for interface link up and link down notification
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through HTTP/TFTP
    • Dual images
    • Hardware-based reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • SFP-DDM (digital diagnostic monitor)
    • Cable diagnostics
    • ICMPv4/ICMPv6 remote ping
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS, NMSViewerPro and CloudViewerPro for deployment management

Standard

19-Zoll Rackmount
Ja
19-Zoll Winkel
inklusive
1GBit Ports
24
Abmessungen
440 x 330 x 44 mm
Anzahl PDs, 60 Watt
12
Anzahl PDs, 95 Watt
7
Anzahl PDs, IEEE802.3at
24
Basic Management Schnittstelle
Console, Web browser, Telnet, SNMP v1, v2c
Bauform
Rackmountable
Betriebstemperatur
0°C - +50°C
Erweit. Temperaturbereich
Nein
ESD/EMP Schutz
Kontakt: ± 6KV, Luft: ± 8KV
Flow Control
IEEE 802.3x pause frame for full duplex
Hauptgeschwindigkeit
1 Gbit Kupfer
Höheneinheiten
1 HE
IGMP Snooping
IPv4 IGMP snooping v2, v3, IGMP querier, Up to 256 multicast groups
Jumbo Frame
Back pressure for half duplex
Konsolen Ports
1x RS232-to-RJ45
Layer2 Port Mirroring
TX/RX/both, Many-to-1 monitor, Up to 4 sessions
Leistungsaufnahme max.
775 W
Link Aggregation
IEEE 802.3ad LACP and static trunk, Supports 8 groups with 8 ports per trunk
Lüfter Anzahl
4
Lüfterlos
Nein
Luftfeuchtigkeit
5 - 95%, nicht kondensierend
MAC Adressen Table
16 K
Managed
Managed
max. Leistung pro Port, PoE
95 W
MLD Snooping
IPv6 MLD snooping v1, v2, up to 256 multicast groups
Netzwerk Ports
24-Port
PoE Budget
≥500 Watt
PoE Gesamtleistung
720 W
PoE Netzteil
802.3bt : End-span+Mid-span, 802.3at : End-span
PoE Ports
24
PoE Standard
IEEE 802.3 af/at/bt
Port Sicherheit
Built-in RADIUS client to co-operate with RADIUS server, RADIUS/TACACS+ user access authentication
Port Speed, RJ45
1 Gbit
Portanzahl
24 - 32
QoS
8 mapping IDs to 8 level priority queues: Port number / 802.1p priority / DSCP/IP precedence of ...
Redundante PSU
Nein
Ringfunktion
Supports ERPS, and complies with ITU-T G.8032, Recovery time < 450ms
Secure Management Schnittstelle
SSHv2, TLS v1.2, SNMP v3
SFP Ports
-
SFP+ Ports
4
Shared Data Buffer
12 Mbits
SNMP MIBs
RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RF ...
Spanning Tree Protokoll
IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE ...
Stackable
Ja
Stromversorgung
100 - 240 VAC, 50/60 Hz
Switch Architektur
Store-and-Forward
Switch Datendurchsatz @ 64 Bytes
95.23 Mpps
Switch Fabric
128Gbps/non-blocking
Überspannungs Schutz
Gleichtakt 4 kV, Gegentakt 2 kV
Uplink Geschwindigkeit
10 Gbit Fiber
VLAN
802.1Q tagged VLAN, 802.1ad Q-in-Q tunneling (VLAN stacking), Protocol VLAN, Private VLAN (Prote ...
Zertifikate / Zulassungen
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste
IPv4/IPv6 IP-based ACL/MAC-based ACL, IPv4/IPv6 IP-based ACE/MAC-based ACE, Max. 256 ACL entries
