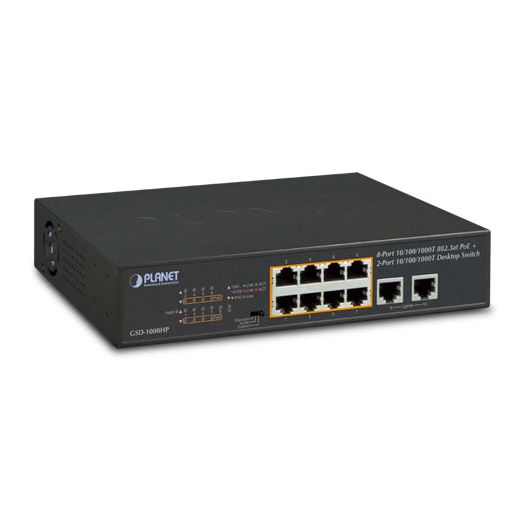

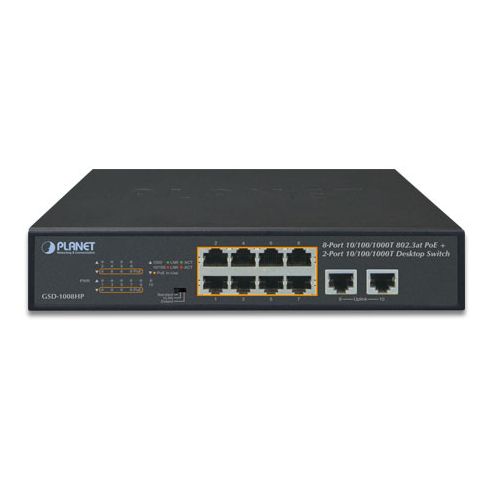

8-Port 10/100/1000Mbps 802.3at PoE + 2-Port 10/100/1000T Desktop Switch, 120W
Rack Mount Kit ist enthalten!
- 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
- 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
Power over Ethernet
- Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 55V DC power to PoE powered device
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode with 250m in extended mode
Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
- 9-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Lagerbestand:
Rack Mount Kit ist enthalten!
- 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
- 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
Power over Ethernet
- Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 55V DC power to PoE powered device
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode with 250m in extended mode
Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
- 9-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Höheneinheiten:
1 HE
PoE Standard:
IEEE 802.3 af/at
Portanzahl:
8 - 15
PoE Support:
Ja
Bauform:
19" Rackmount
Abmessungen:
220 x 150 x 43mm
1 GBit Ports:
10
19-Zoll Rackmount:
Ja
Betriebstemperatur:
0°C - +50°C
DIP Switch Funktion:
Standard / VLAN / Extend
ESD/EMP Schutz:
Kontakt: 4KV DC, Luft: 6KV DC
Flow Control:
IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
Gehäuse Material:
Metall
Luftfeuchtigkeit:
5 - 95%, nicht kondensierend
Lüfter:
1
MAC Adressen Table:
8K
Max. Anzahl PDs Class 2:
8
Max. Anzahl PDs Class 3:
8
Max. Anzahl PDs Class 4:
4
Maximum Frame Size:
9K
Netzwerk Ports:
8-Port
PoE Gesamtleistung:
120 Watt
Standards & Protokolle:
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x Flow c ...

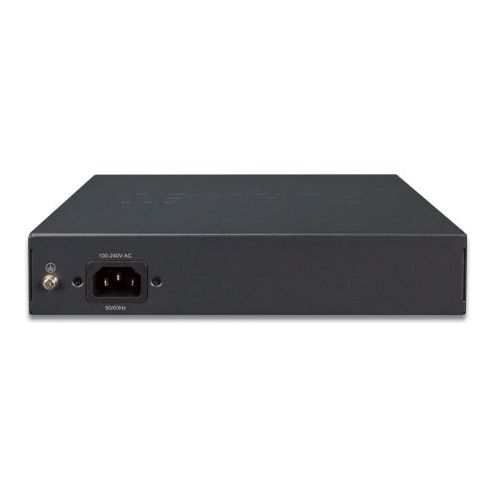

Stromversorgung:
100 - 240V AC, 50/60Hz, 2.5A
Switch Architektur:
Store-and-Forward
Switch Datendurchsatz @ 64 Bytes:
14.88 Mpps
Switch Fabric:
20Gbps / non-blocking
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
