Single Port 10/100/1000Mbps 802.3bt Ultra POE++ Injector (95 Watts)

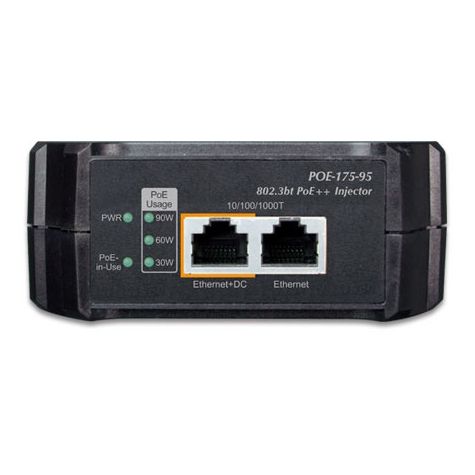

- 2 RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input

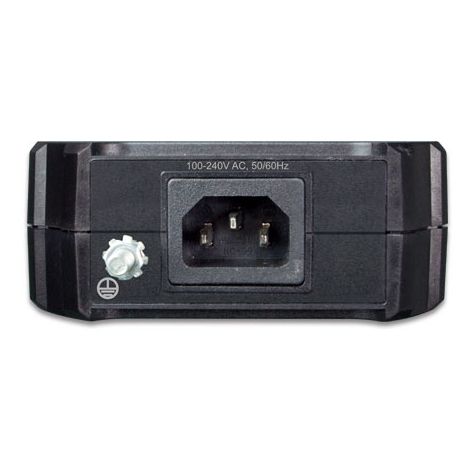

- 1 AC 100~240V input power socket
Power over Ethernet:
- Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
- Supports PoE power up to 95 watts for PoE port
- Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
- Monitor the status of the total PoE usage in real time
- Remote power feeding up to 100m
Hardware:
- All-in-one compact size design
- Internal power supply
- LED indicators for Power LED, PoE Usage LED and PoE-in-Use LED
- Wall-mount design
Lagerbestand:
- 2 RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input
- 1 AC 100~240V input power socket
Power over Ethernet:
- Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
- Supports PoE power up to 95 watts for PoE port
- Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
- Monitor the status of the total PoE usage in real time
- Remote power feeding up to 100m
Hardware:
- All-in-one compact size design
- Internal power supply
- LED indicators for Power LED, PoE Usage LED and PoE-in-Use LED
- Wall-mount design
Technische Daten
PoE Standard:
IEEE 802.3 at/bt
PoE Support:
IEEE 802.3 at/bt
Abmessungen:
170 x 100 x 40 mm
1 GBit Ports:
1
1 GBit Ports, PoE-Out:
1
Betriebstemperatur:
0°C - +50°C
Leistungsaufnahme:
120 W
Luftfeuchtigkeit:
5 - 90%, nicht kondensierend
PoE Gesamtleistung:
95 W
PoE Netzteil:
End-Span + Mid-Span
Stromversorgung:
100 - 240V AC, 1.5A
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
