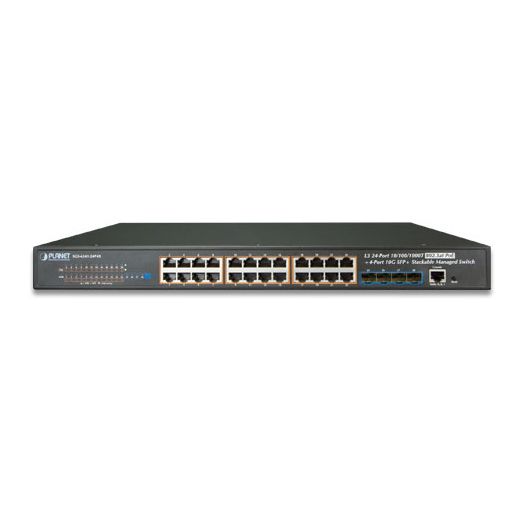

Layer3 24-Port 10/100/1000T 802.3at POE + 4-Port 10G SFP+
- 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at/af PoE injector
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- RJ45 to DB9 console interface for switch basic management and setup
Powerful Layer 3 Gigabit Routing and Power over Ethernet Solution
PLANET SGS-6341-24P4X is a Layer 3 PoE Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128Gbps switching fabric, the SGS-6341-24P4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-24P4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6341-24P4X has 24 IEEE 802.3at PoE+ ports and PoE budget up to 370 watts for catering to medium to large scale of VoIP or IP surveillance networks at a lower total cost.
Lagerbestand:
Artikelnummer:
SGS-6341-24P4X
Herstellernummer:
SGS-6341-24P4X
Herstellerseite:
PLANET
EAN:
4711605282031
- 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at/af PoE injector
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- RJ45 to DB9 console interface for switch basic management and setup
Powerful Layer 3 Gigabit Routing and Power over Ethernet Solution
PLANET SGS-6341-24P4X is a Layer 3 PoE Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128Gbps switching fabric, the SGS-6341-24P4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-24P4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6341-24P4X has 24 IEEE 802.3at PoE+ ports and PoE budget up to 370 watts for catering to medium to large scale of VoIP or IP surveillance networks at a lower total cost.
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Produktfamilie:
Layer 3 IPv4/IPv6, SGS
PoE Standard:
IEEE 802.3 af/at
Portanzahl:
24 - 32
PoE Support:
Ja
Managed:
Managed
Abmessungen:
440 x 330 x 44.5 mm, 1U height
Authentifizierung:
IEEE 802.1x port-based network access controlAAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
1 GBit Ports:
24
Anzahl PDs, 15,4 Watt:
24
Anzahl PDs, 30 Watt:
12
Arbeitsspeicher / RAM:
16MB Flash
Betriebstemperatur:
0°C - +50°C
Flow Control:
Back pressure for half-duplexIEEE 802.3x pause frame for full-duplex
Jumbo Frame:
9KB
LEDs:
System:PWRPorts:10/100/1000T RJ45 Port: LNK/ACT and PoE-in-Use1/10G SFP+ slot: LNK/ACT
Lagertemperatur:
-10°C bis 70°C
Layer2 Bandwidth Control:
TX/RX/Both
Layer3 Routing Protokolle:
Static routing, RIP and OSPF
Layer3 Routing Table:
Total 128 entries (IPv4/IPv6 shared)
Leistungsaufnahme max.:
435W / 1484.28 BTU
Link Aggregation:
IEEE 802.3ad LACP/static trunkSupports 16 groups with 8 ports per trunk group
Luftfeuchtigkeit:
5 - 90%, nicht kondensierend
Luftfeuchtigkeit Lagerung:
5 - 95%, nicht kondensierend
MAC Adressen Table:
16K MAC address table with auto learning function
Management:
Supports both IPv4 and IPv6 addressingSupports the user IP security inspection for IPv4/IPv6 SNM ...
Multicast:
IGMP v1/v2/v3 snoopingQuerier mode supportMLD v1/v2 snoopingMulticast VLAN Register (MVR)
Netzwerk Ports:
24-Port
PoE Ausgangspannung / Leistung:
Per port 53V DC, 30.8 watts (max.)
PoE Gesamtleistung:
370 Watts (max.)
PoE Netzteil:
End-span
Port Konfiguration:
Port disable/enableAuto-negotiation 10/100/1000Mbps full and half duplex mode selectionFlow cont ...
Port Status:
Display each port’s speed duplex mode, link status, flow control status and auto negotiation s ...
Power Pin-Belegung:
1/2(+), 3/6(-)
Prozessor:
ARM A9 400MHz
QoS:
8 priority queues on all switch portsSupports strict priority and Weighted Round Robin (WRR) CoS ...
SFP+ Ports:
4 (Combo)
SNMP MIBs:
RFC 1213 MIB-IIRFC 1215 Internet Engineering Task ForceRFC 1271 RMONRFC 1354 IP-Forwarding MIBRF ...
Serieller Konsolen Port:
1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
Shared Data Buffer:
1.5 MB
Sicherheit Layer2:
Supports MAC + port bindingIPv4/IPv6 + MAC + port bindingIPv4/IPv6 + port bindingSupports MAC fi ...
Standards & Protokolle:
IEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3z Gigabit 1000BASE-SX/LXIEEE 802.3ab Gigabit ...
Stromversorgung:
AC 100~240V, 50/60Hz
Switch Architektur:
Store-and-Forward
Switch Datendurchsatz:
95.24Mpps
Switch Fabric:
128Gbps / non-blocking
System Konfiguration:
Console; Telnet; SSH; Web browser; SNMP v1, v2c and v3
VLAN:
802.1Q tagged based VLAN, up to 256 VLAN groups802.1ad Q-in-Q (VLAN stacking)GVRP for VLAN manag ...
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste:
Supports Standard and Expanded ACLIP-based ACL/MAC-based ACLTime-based ACLUp to 512 entries
