Industrial L3 16-Port 1Gbit + 4-Port 10Gbit SFP+ Managed Ethernet Switch
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- Console and Telnet Command Line Interface
- HTTP web switch management
- SNMP v1 and v2c switch management
- SSH, TLS, SSL and SNMP v3 secure access
SNMP Management - Four RMON groups (history, statistics, alarms, and events)
- SNMP trap for interface Link Up and Link Down notification
- IPv6 IP address/NTP/DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP
- Reset button for system reboot or reset to factory default
- Dual Images
- DHCP Relay
- DHCP Option 82
- DHCP Server
- User Privilege levels control
- Network Time Protocol (NTP)
- Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
- ICMPv6/ICMPv4 remote ping
- SMTP/Syslog remote alarm
- System Log
- PLANET Smart Discovery Utility for deployment management
Lagerbestand:
Artikelnummer:
IGS-6325-16T4X
Herstellernummer:
IGS-6325-16T4X
Herstellerseite:
PLANET
EAN:
4711605287425

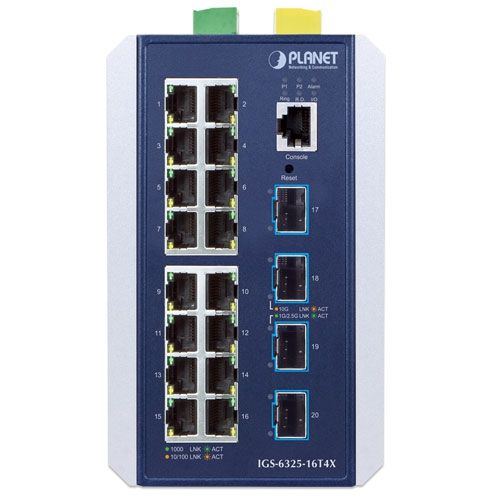

- 16x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
- 4x 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
- One RJ45-to-RS232 console interface for basic management and setup
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- Console and Telnet Command Line Interface
- HTTP web switch management
- SNMP v1 and v2c switch management
- SSH, TLS, SSL and SNMP v3 secure access
SNMP Management - Four RMON groups (history, statistics, alarms, and events)
- SNMP trap for interface Link Up and Link Down notification
- IPv6 IP address/NTP/DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP
- Reset button for system reboot or reset to factory default
- Dual Images
- DHCP Relay
- DHCP Option 82
- DHCP Server
- User Privilege levels control
- Network Time Protocol (NTP)
- Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
- ICMPv6/ICMPv4 remote ping
- SMTP/Syslog remote alarm
- System Log
- PLANET Smart Discovery Utility for deployment management
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Höheneinheiten:
1 HE
Portanzahl:
16 - 23
PoE Support:
-
Managed:
Managed
Bauform:
19" Rackmount
Abmessungen:
96 x 107 x 152 mm
Speicher intern:
512 MB
Schutzklasse:
IP30
1 GBit Ports:
16
19-Zoll Rackmount:
Ja
19-Zoll Winkel:
inklusive
Anschluss A:

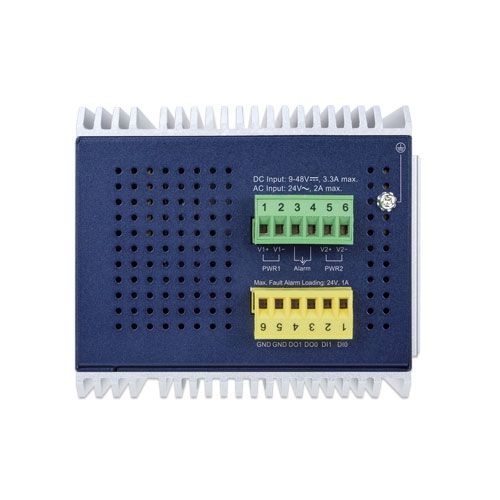

Removable 6-pin terminal block for power input: Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pi ...
Anschluss B:
Removable 6-pin terminal block for DI/DO interface: Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, ...
Basic Management Schnittstelle:
Console; Telnet; Web browser; SNMP v1, v2c
Befestigung:
Hutschiene / Wandmontage
ESD/EMP Schutz:
6 KV DC
Erweit. Temperaturbereich:
Nein
Flashspeicher:
64 MB
Flow Control:
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Gehäuse Material:
Aluminium
IGMP Snooping:
IPv4 IGMP (v1/v2/v3) snooping, IPv4 IGMP querier mode support, Supports 255 IGMP groups
Jumbo Frame:
10K bytes
Konsolen Ports:
1 x RJ45-to-RS232
Layer2 Bandwidth Control:
Per port bandwidth control, Ingress: 100Kbps~1000Mbps, Egress: 100Kbps~1000Mbps
Layer2 Port Mirroring:
TX/RX/Both, Many-to-1 monitor, RMirror – Remote Switched Port Analyzer (Cisco RSPAN), Supports ...
Layer3 IP Interfaces:
Max. 128 VLAN interfaces
Layer3 Routing Protokolle:
IPv4 RIPv1/v2 for dynamic routing, IPv4 OSPFv2 for dynamic routing, IPv4 hardware static routing ...
Layer3 Routing Table:
max. 128 routing entries, max. 4K H/W routing table entries
Leistungsaufnahme max.:
24 W
Link Aggregation:
IEEE 802.3ad LACP/static trunk, 10 trunk groups with 16 ports per trunk group
Lüfterlos:
Nein
MAC Adressen Table:
32K entries, automatic source address learning and ageing
MLD Snooping:
IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support, Supports 255 MLD groups
Netzwerk Ports:
16-Port
Port Konfiguration:
Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow ...
Port Speed, RJ45:
1 Gbit
Port Status:
Display each port’s speed duplex mode, link status, flow control status, auto-negotiation stat ...
QoS:
Traffic classification based, strict priority and WRR, 8-level priority for switching: Port numb ...
Redundante PSU:
Nein
SFP+ Ports:
4
SFP Ports:
-
Secure Management Schnittstelle:
SSHv2, TLS v1.2, SNMPv3
Shared Data Buffer:
32 Mbits
Sicherheit:
Port security, IP source guard, up to 512 entries, Dynamic ARP inspection, up to 1K entries, Com ...
Spanning Tree Protokoll:
IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multip ...
Stackable:
Ja
Stromversorgung:
9- 48V DC, 3.3A max. / AC 24V, 2A max.
Switch Architektur:
Store-and-Forward
Switch Datendurchsatz @ 64 Bytes:
83.33 Mpps
Switch Fabric:
112 Gbps / non-blocking
Uplink Geschwindigkeit:
10 Gbit Fiber
VLAN:
IEEE 802.1Q tagged VLAN, IEEE 802.1ad Q-in-Q tunneling, Private VLAN Edge (PVE), MAC-based VLAN, ...
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste:
IP-based ACL/MAC-based ACL, ACL based on: MAC Address / IP Address / Ethertype / Protocol Type ...
Überspannungs Schutz:
4 kV DC
