10/100Base-TX zu 100Base-FX Smart Medienkonverter
Distance Extended with Fiber Optic Cable

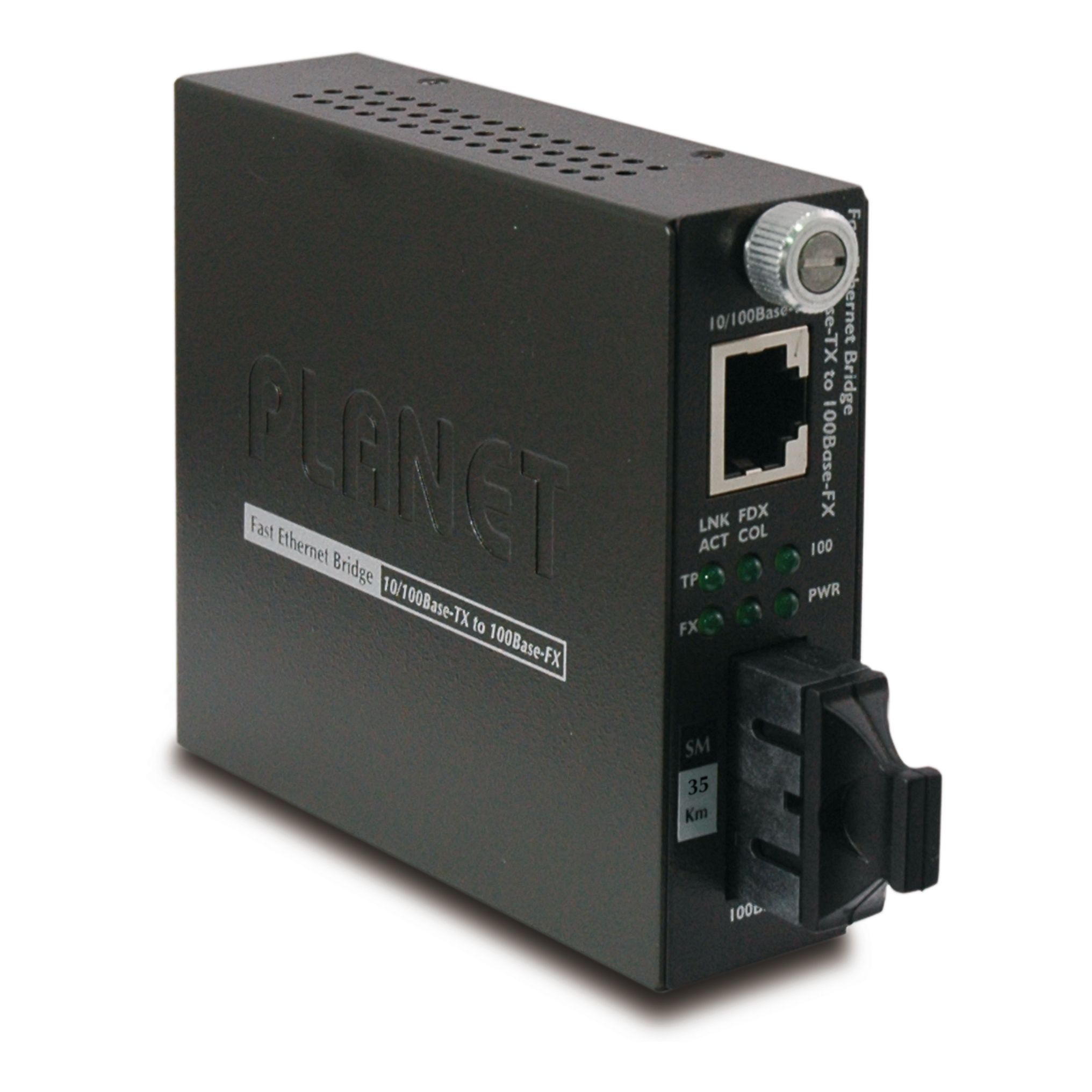

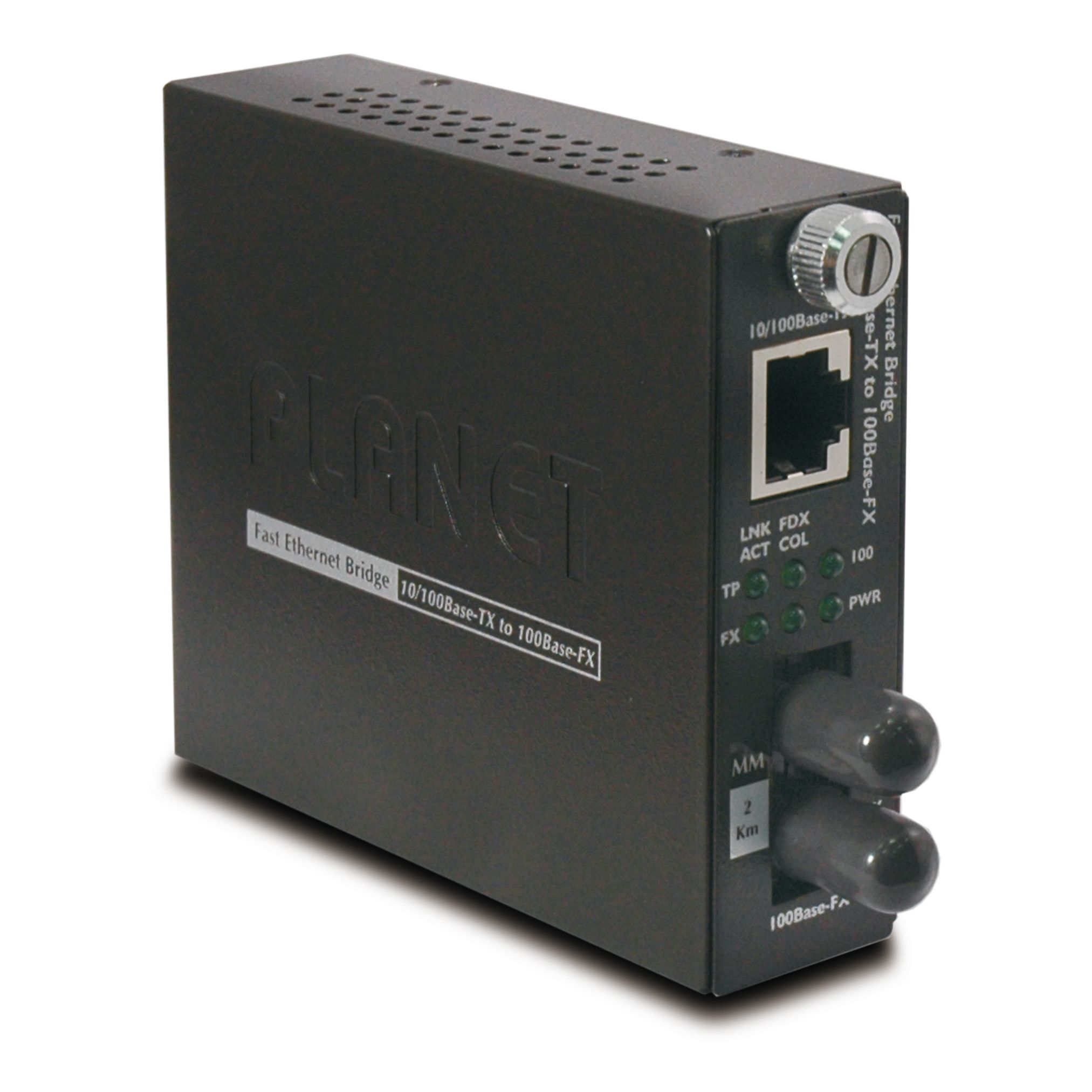

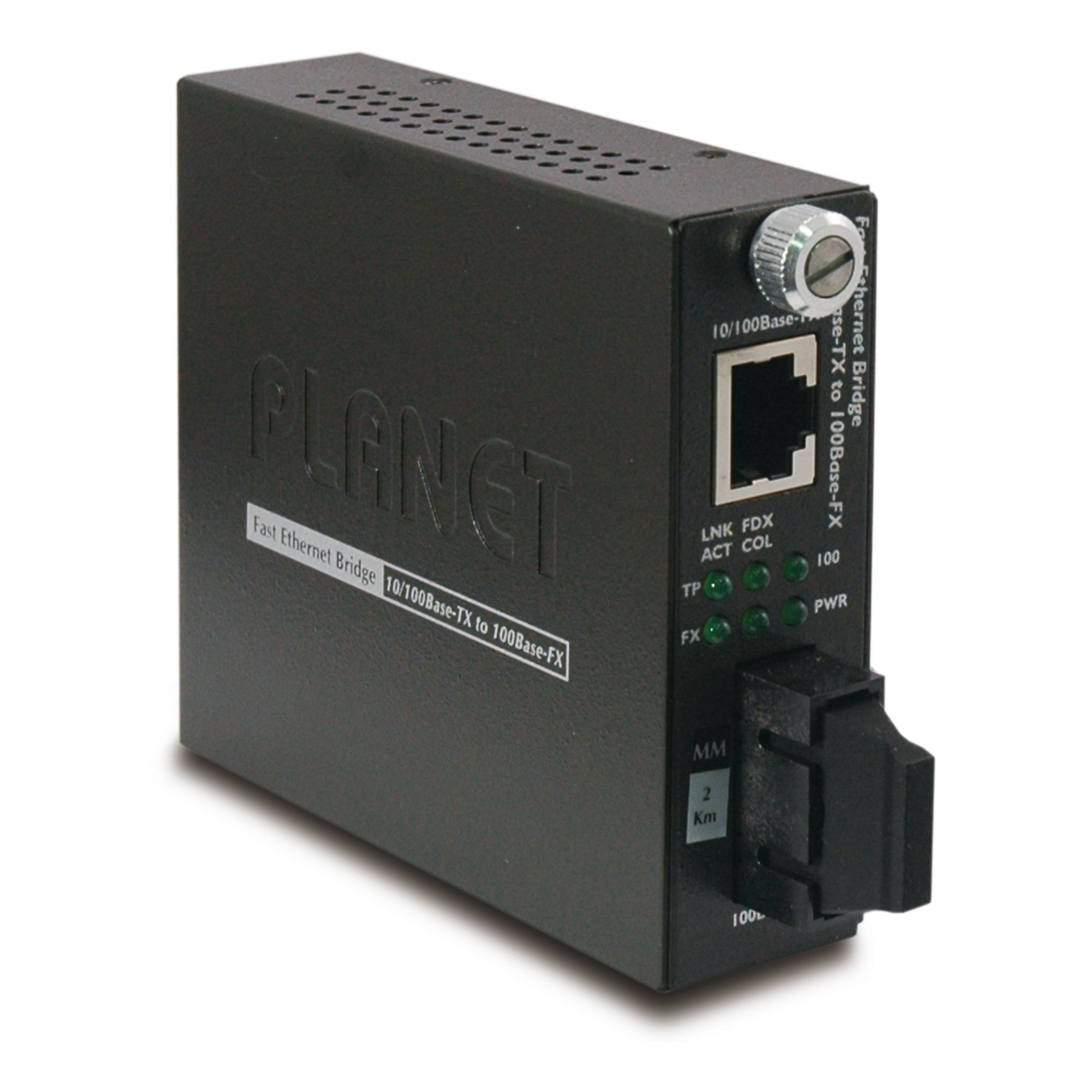

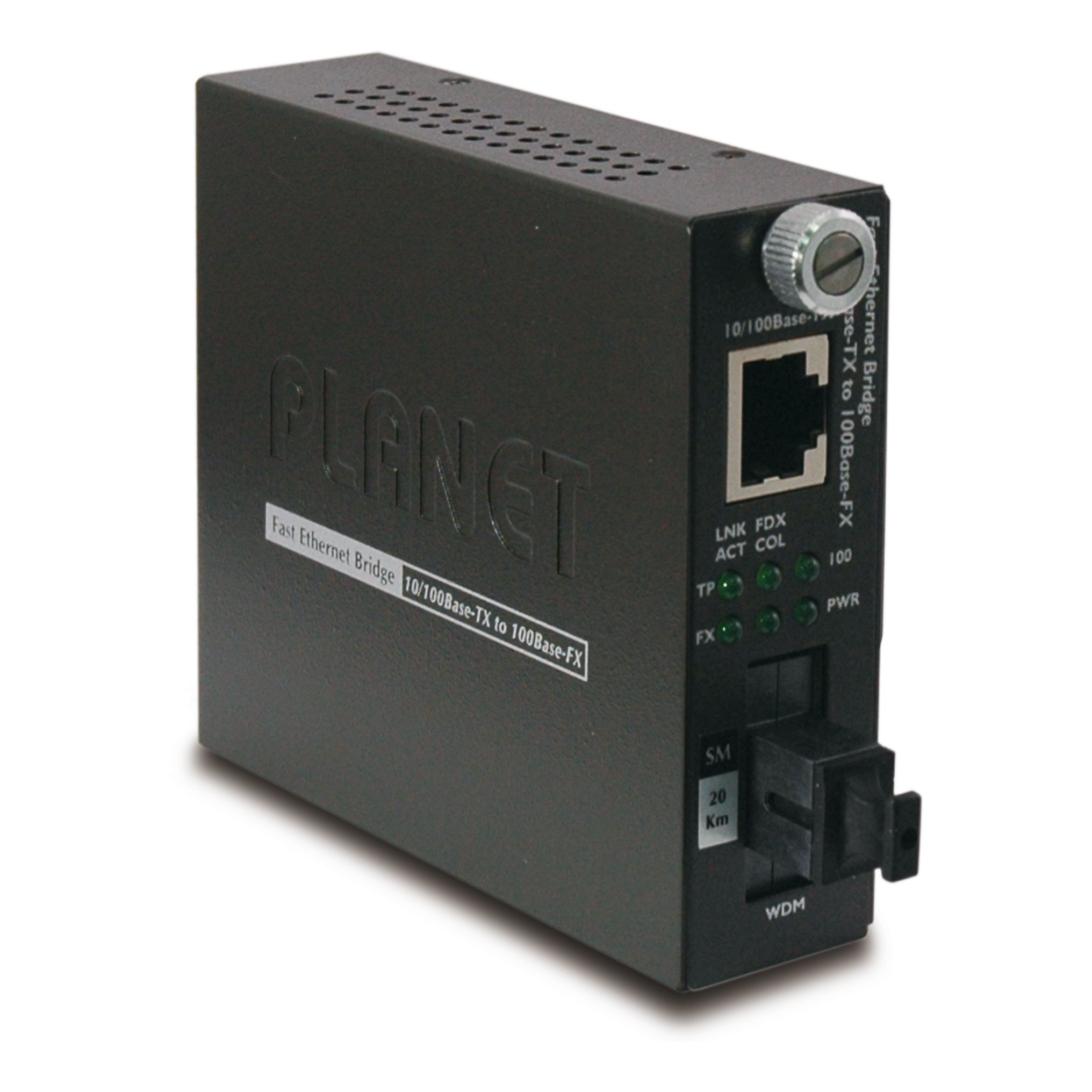

PLANET FST-80x Smart Media Converter series provides media conversion between 10/100BASE-TX and 100BASE-FX interfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km) and single fiber connector using the wavelength-division multiplexing (WDM) technology (20/60km) to enable to extend links over long distances using fiber optic cable.
Enhanced Smart Management Features
The FST-80x series provides auto MDI/MDI-X on their TP port and store-and-forward mechanism to eliminate faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half/full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interfaces. Besides, the Link Loss Return (LLR) and Link Loss Carry Forward (LLCF) functions can immediately alarm network administrator once there is a media link issue, thus helping to monitor the status of the entire network.
Easy Installation
The FST-80x series can be connected easily and cost-effectively as these smart media converters can be used as a standalone unit when powered on by its DC adapter, or used as a slide-in module connected to PLANET 19-inch, 16-slot web smart/managed media converter chassis (MC-1600MR/MC-1600MR48 and MC-1610MR/MC-1610MR48). When working with the web smart/managed media converter chassis, the status of the FST-80x can be monitored via the local RS-232 console and remote web interface.
Lagerbestand:
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and 100BASE-FX Ethernet standards
- One 10/100BASE-TX port with RJ45 connector
- One 100BASE-FX port with ST/SC/WDM connector supporting multi-mode or single-mode fiber optic cable
- Auto-negotiation and auto-MDI / MDI-X for 10/100BASE-TX port
- Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate
- Link Loss Return (LLR) switch on each fiber optic is to aid in troubleshooting remote network connections
- Link Loss Carry Forward (LLCF) works with LLR in diagnosing network connections
Distance Extended with Fiber Optic Cable
PLANET FST-80x Smart Media Converter series provides media conversion between 10/100BASE-TX and 100BASE-FX interfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km) and single fiber connector using the wavelength-division multiplexing (WDM) technology (20/60km) to enable to extend links over long distances using fiber optic cable.
Enhanced Smart Management Features
The FST-80x series provides auto MDI/MDI-X on their TP port and store-and-forward mechanism to eliminate faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half/full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interfaces. Besides, the Link Loss Return (LLR) and Link Loss Carry Forward (LLCF) functions can immediately alarm network administrator once there is a media link issue, thus helping to monitor the status of the entire network.
Easy Installation
The FST-80x series can be connected easily and cost-effectively as these smart media converters can be used as a standalone unit when powered on by its DC adapter, or used as a slide-in module connected to PLANET 19-inch, 16-slot web smart/managed media converter chassis (MC-1600MR/MC-1600MR48 and MC-1610MR/MC-1610MR48). When working with the web smart/managed media converter chassis, the status of the FST-80x can be monitored via the local RS-232 console and remote web interface.
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Produktfamilie:
Smart FE Media Converter, Web Smart
Standard:
100BASE-TX / 100BASE-FX
Schnittstellen:
Gigabit Ethernet / ST
Max. Distanz Fiber:
2 km
Abmessungen:
94 x 81 x 26 mm
1 GBit Ports:
1
100Base-FX Port:
1
Betriebstemperatur:
0°C - +50°C
DIP Switch Funktion:
DIP-1: Fiber full / half duplex modeDIP-2: Copper forced mode / auto-negotiation modeDIP-3: Copp ...
LEDs:
System: PWR TP: LNK/ ACT, FDX/ COL, 100FX: LNK/ ACT, FDX/ COL
LWL Wellenlänge:
1310 nm
Lagertemperatur:
-10°C bis 70°C
Launch Power (dBm) max.:
-14
Launch Power (dBm) min.:
-20 (62.5/125µm), -23.5 (50/125µm)
Leistungsaufnahme max.:
6.2W / 21 BTU
Luftfeuchtigkeit:
5 bis 90%
Luftfeuchtigkeit Lagerung:
5~90% RH
Max. Kabellängen:
10BASE-T: up to 100 meters, 100BASE-TX: up to 100 meters, 100BASE-FX: up to 2 km
Maximum Input Power (dBm):
-14
Receive Sensitivity (dBm):
-31.8
Spannungseingang:
DC 5V, 2A
Speed-Twisted-Pair:
Ethernet: 10/20Mbps for half / full-duplex Fast Ethernet: 100/200Mbps for half / full-duplex
Standards & Protokolle:
IEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX and 100BASE-FX
Zertifikate / Zulassungen:
FCC Class B, CE mark
