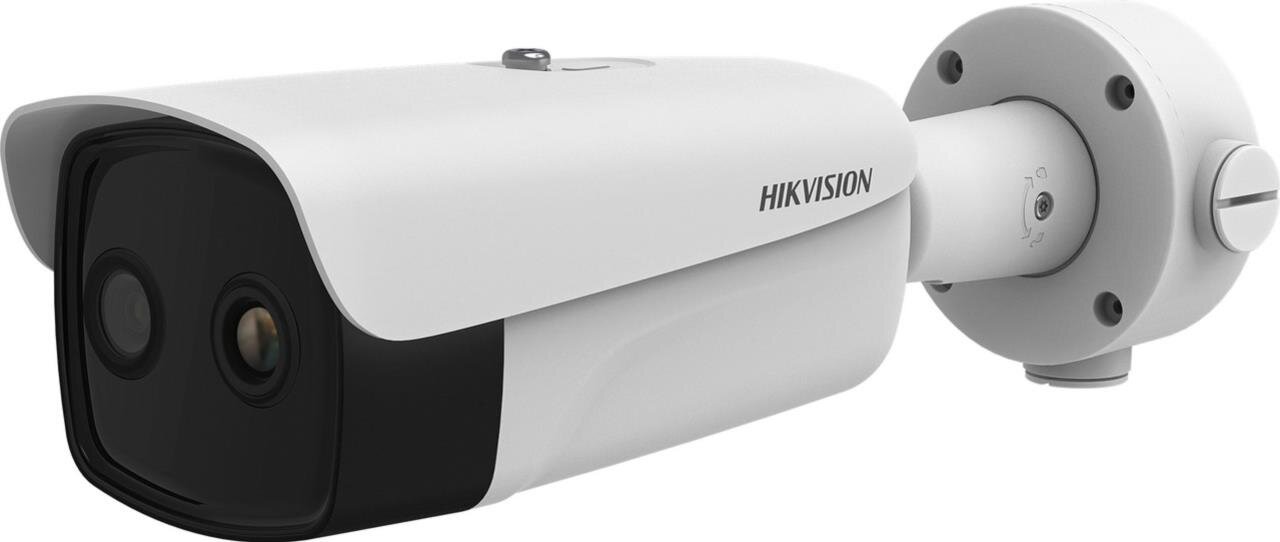

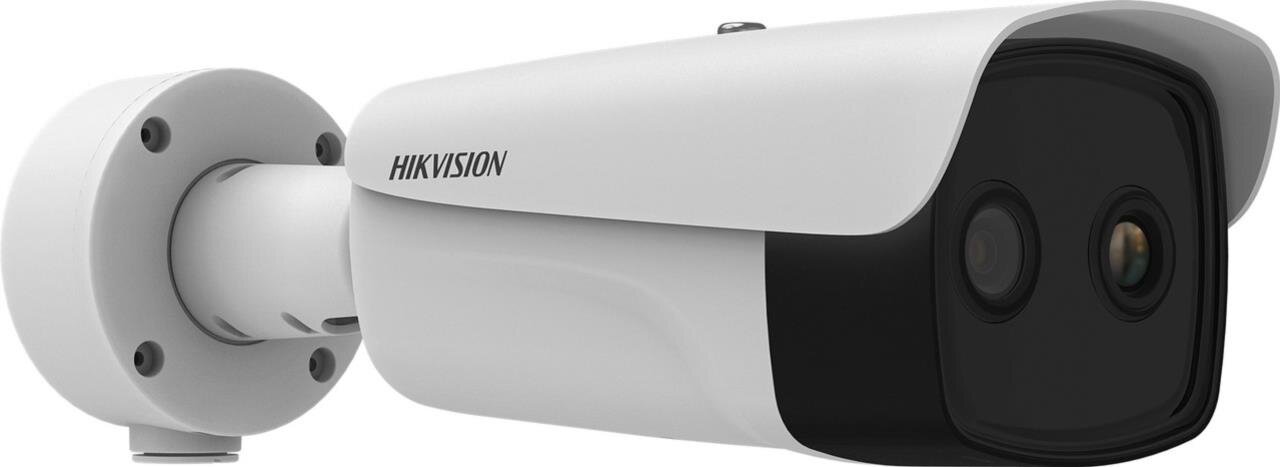

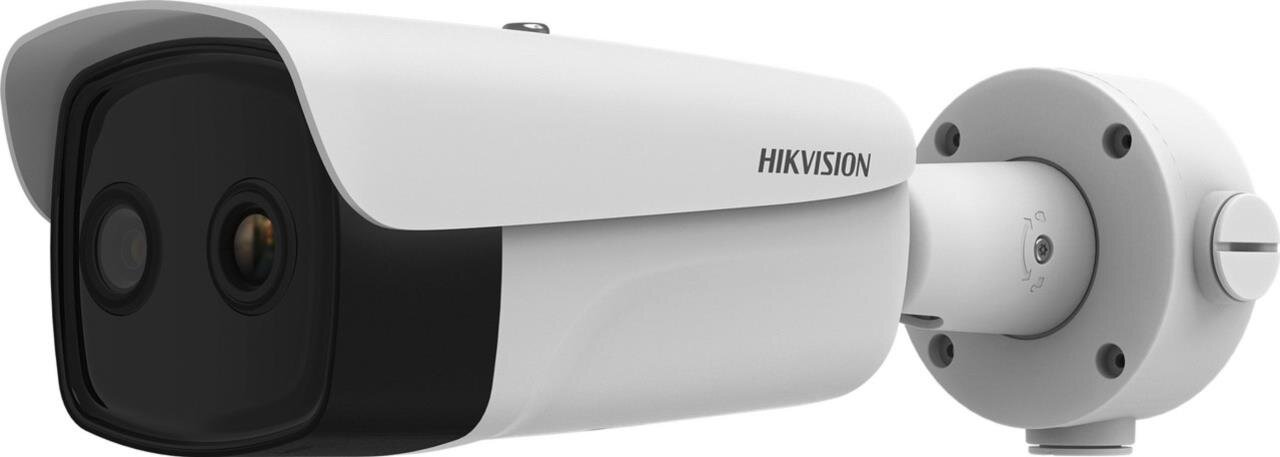

DS-2TD2637-10/QY - 4MP IP fixed Thermal & Optical Bullet Kamera, IP66, PoE
Preis auf Anfrage
  • 384 x 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C
  • ... mehr
Verfügbarkeit
nicht lagernd
Login für mehr Info
Artnr
305401817
Hersteller
Hikvision mehr
Bereits gekauft?
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • 384 x 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Smoking detection Algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Hikvision DS-2TD2637-10/QY Anti-corrosion Bi-spectrum Network Bullet Camera is applied to perimeter protection and fire-prevention purposes in critical infrastructures such as airport, railway, prison, power station, and 4S stores. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anti-corrosion coating to meet the requirements of used in anti-corrosion environment.

Standard

100MBit Ports
1
Abmessungen
376.1 x 119.1 x 118.1 mm
Alarmausgang
2
Alarmeingang
2
Anwendungsbereich
Outdoor
Audio
Ja
Audio Codec
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Audio Input
1
Audio Output
1
Auflösung
4 MP
Auflösung max. Pixel
2688 x 1520 + 384 x 288
Bauform
Bullet
Beleuchtung
IR
Beleuchtung Reichweite
bis zu 30 m
Betriebstemperatur
-40°C - +65°C
Bildrate max.
30 fps
Bildsensor
1/2.7" CMOS + Vanadium Oxide Uncooled Focal Plane Arrays
Blende
f/1.6 + f/1.0
Blickwinkel Horizontal
84° + 37.5°
Blickwinkel Vertikal
44.8° + 28.5°
Brennweite
4.0 mm + 9.7 mm
Gegenlichtkompensation
Ja
Herstellernummer
DS-2TD2637-10/QY
IP / Analog
IP
Leistungsaufnahme
9.5 W
Lichtempfindlichkeit
0.0089 Lux
Lichtempfindlichkeit erw.
0.0089 Lux @ (F1.6, AGC ON)
Luftfeuchtigkeit
<95%, nicht kondensierend
Mikrofone
-
Objektiv Typ
fix
PoE
IEEE 802.3 af
Produktfamilie
Thermal Security, Bi-Spectrum
Rauschunterdrückung
3D DNR
Schutzklasse
IP67
Serielle Schnittstelle
RS-485
Speicher Slot Typ
microSD/SDHC/SDXC
Streaming
Dual Stream
Stromversorgung
12V DC / 24V AC, PoE
Tag/Nacht Umschaltung
IR Cut Filter
Temperatur Messung Bereich
-20°C - +150°C
Temperatur Messung Genauigkeit
± 8°C
Vandalismusschutz
IK10
Verschlusszeit
1s - 1/100.000s
Videoausgang
Ja
Videokomprimierung
H.265+, H.265
WDR
120 dB
