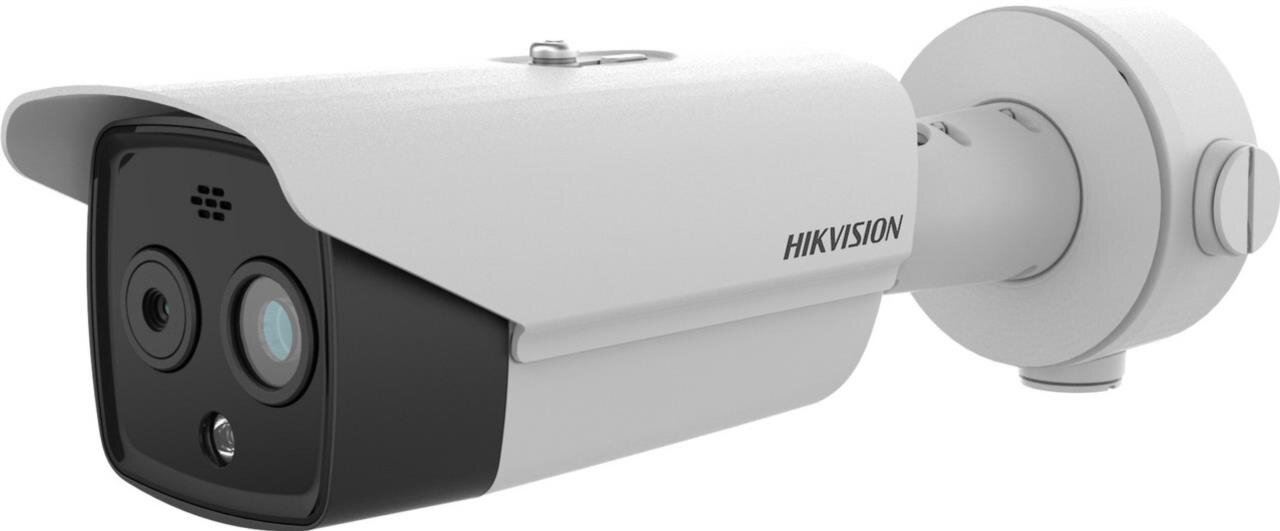

DS-2TD2628-3/QA - 4MP IP fixed Thermal & Optical Bullet Kamera, IP67, PoE
  • 256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C
  • ... mehr
Hersteller
Hikvision mehr
Bereits gekauft?
Ausführungen
1
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Wählen Sie Ihre Produkt-Ausführung

Artikel
Artnr.
Ausführung
Verfügbarkeit Verfügbar?
Anzahl
Preis
DS-2TD2628-3/QA - 4MP IP fixed Thermal & Optical Bullet Kamera, IP67, PoE
DS-2TD2628-3/QA - 4MP IP fixed Thermal & Optical Bullet Kamera, IP67, PoE
Artnr.: 305401573
Variante:
DS-2TD2628-3/QA - 4MP IP fixed Thermal & Optical Bullet Kamera, IP67, PoE
Verfügbarkeit:
nicht lagernd
Login für mehr Info
Anzahl:
Preis: Preis auf Anfrage
Alle Preise zzgl. MwSt.
Die Lieferung erfolgt innerhalb von 1 bis 2 Werktagen

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • 256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc

Standard

100MBit Ports
1
Abmessungen
321.3 x 106.1 x 170 mm
Alarmausgang
2
Alarmeingang
2
Anwendungsbereich
Outdoor
Audio
Ja
Audio Codec
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Audio Input
1
Audio Output
1
Auflösung
4 MP
Auflösung max. Pixel
2688 x 1520 + 256 x 192
Beleuchtung
IR
Beleuchtung Reichweite
bis zu 30 m
Betriebstemperatur
-40°C - +65°C
Bildsensor
1/2.7" CMOS + Vanadium Oxide Uncooled Focal Plane Arrays
Blende
f/1.6 + f/1.0
Blickwinkel Horizontal
84° + 50°
Blickwinkel Vertikal
43-1° + 37.3°
Brennweite
4.3 mm + 3.6 mm
IP / Analog
IP
Kameratyp
Bullet
Leistungsaufnahme
6.0 W
Lichtempfindlichkeit
0.0176 Lux
Lichtempfindlichkeit erw.
Color: 0.0176 Lux @ (F2.25, AGC ON)
Luftfeuchtigkeit
<95%, nicht kondensierend
Objektiv Typ
fix
PoE Standard
IEEE 802.3 af
Produktfamilie
Thermal Security, Bi-Spectrum
Schutzklasse
IP67
Serielle Schnittstelle
RS-485
Speicherplatz / Kartentyp
Micro SD/SDHC/SDXC
Streaming
Dual Stream
Stromversorgung
12V DC, PoE
Temperatur Messung Bereich
-20°C - +150°C
Temperatur Messung Genauigkeit
± 8°C
Verschlusszeit
1s - 1/100.000s
Videoausgang
Ja
Videobildrate max.
30 fps + 25 fps
Videokomprimierung
H.265, H.264, MJPEG
WDR
120 dB
Zoom, digital
2x, 4x
